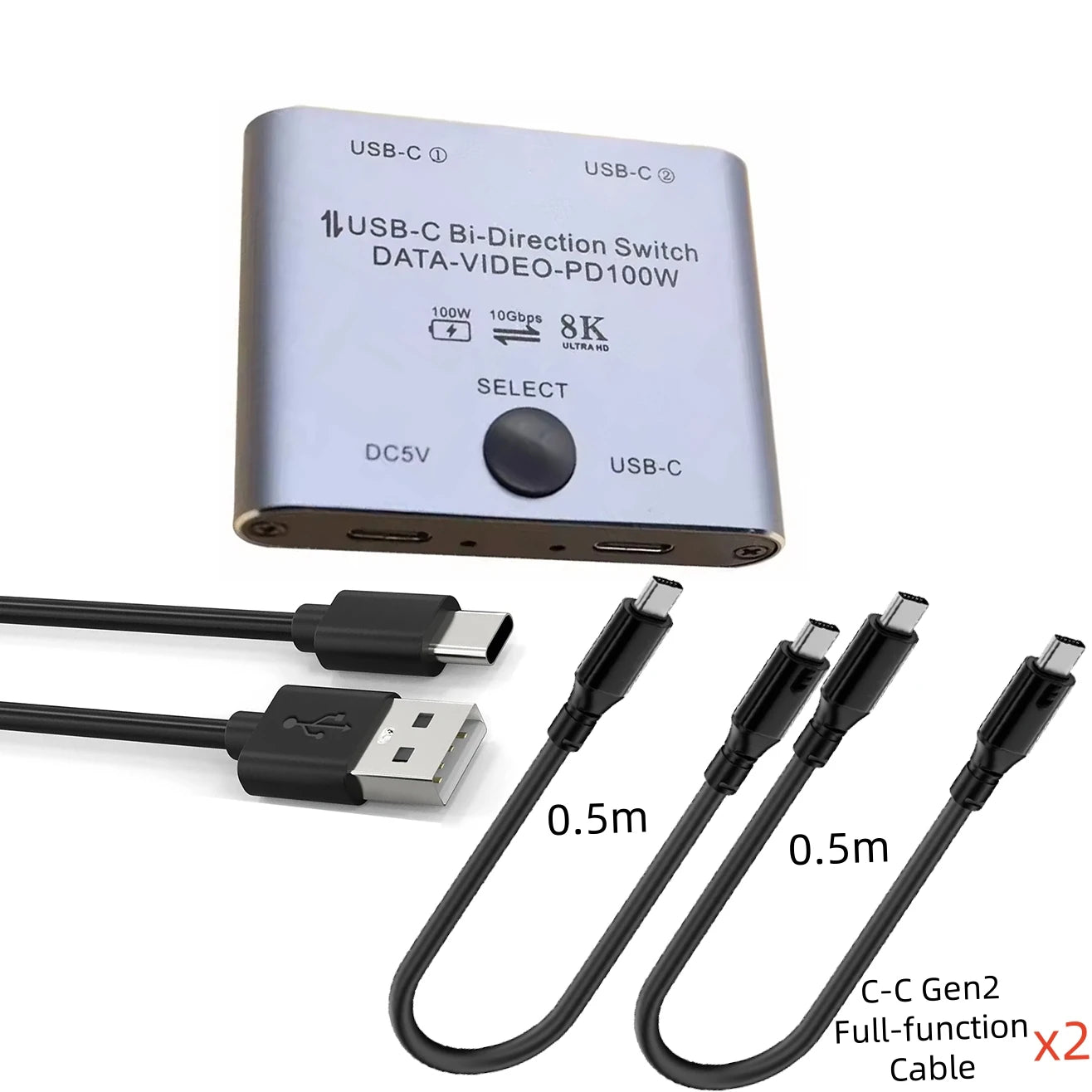

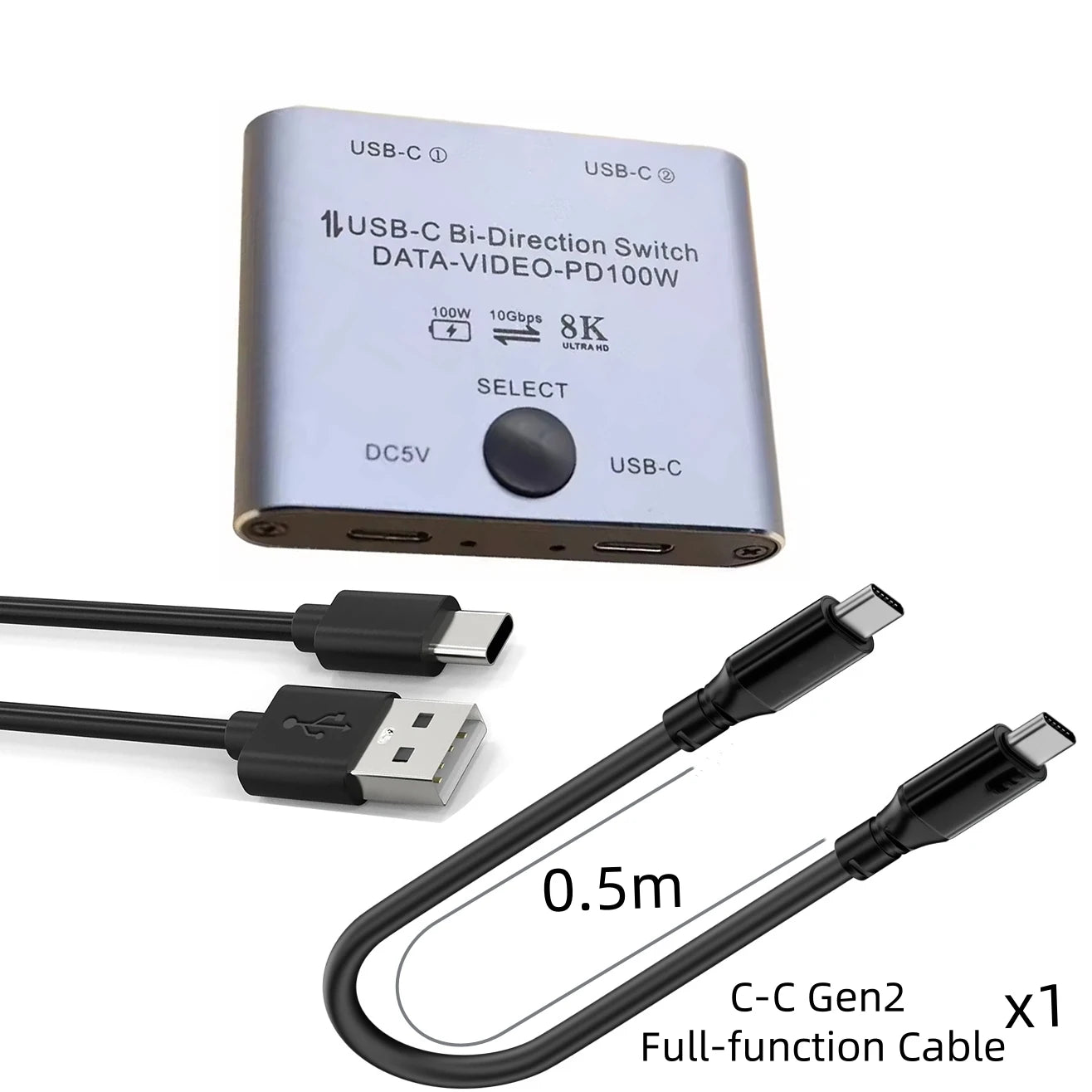

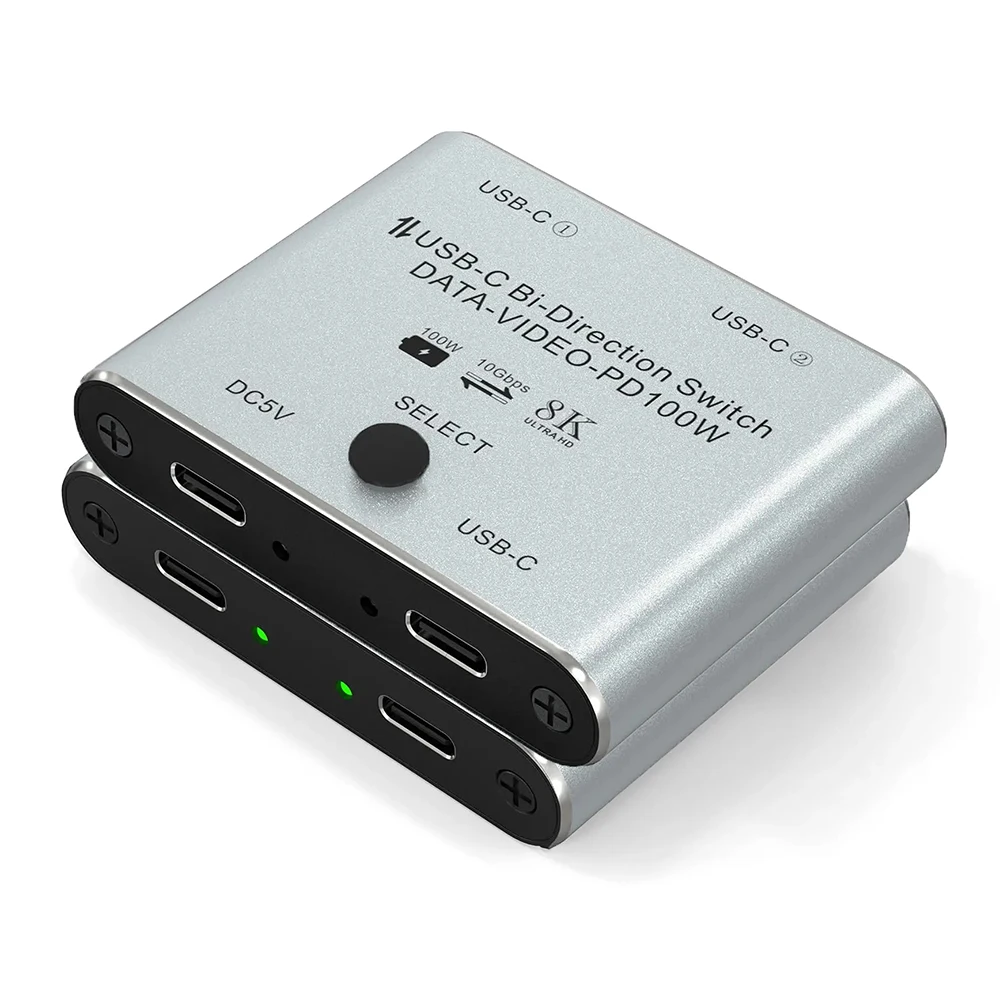

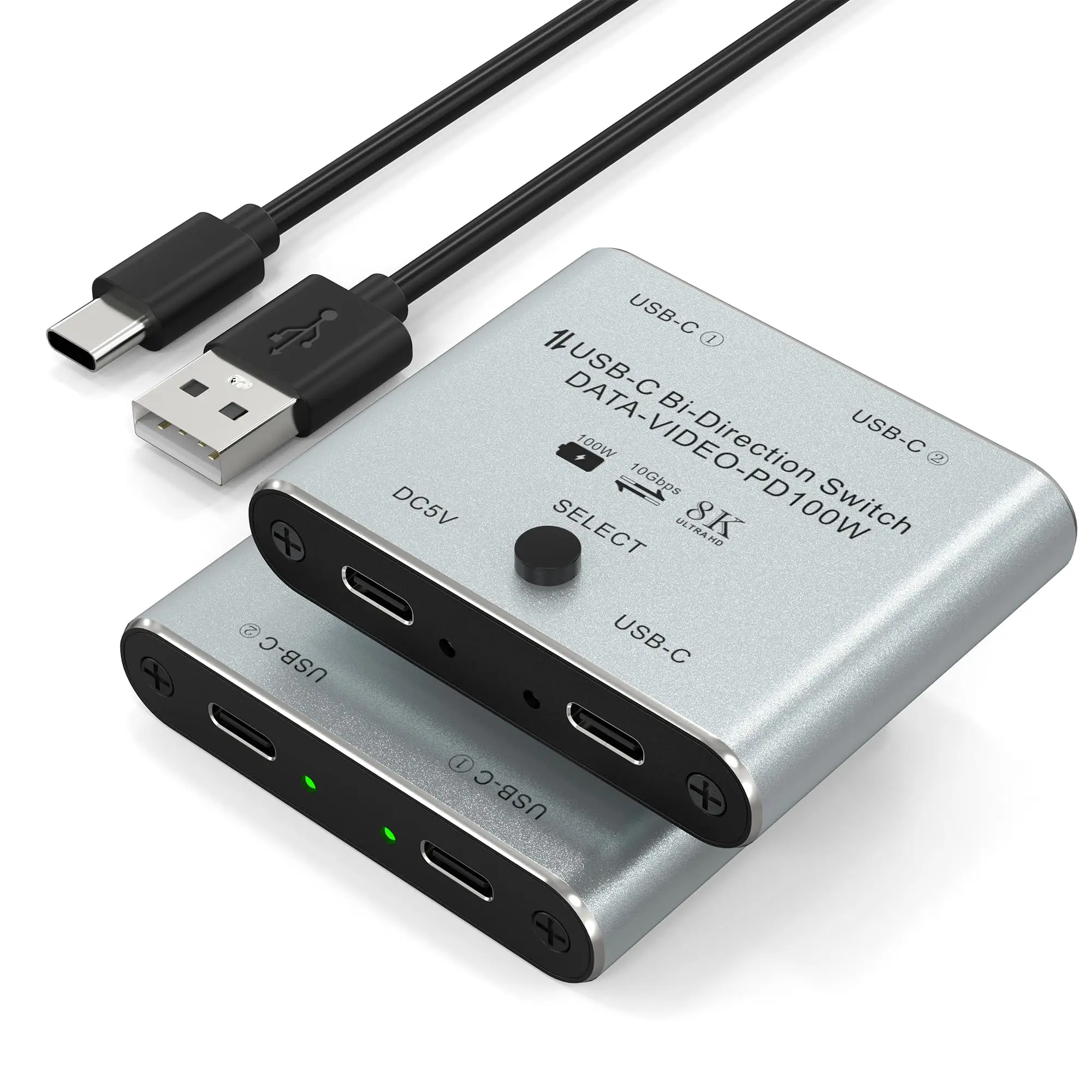

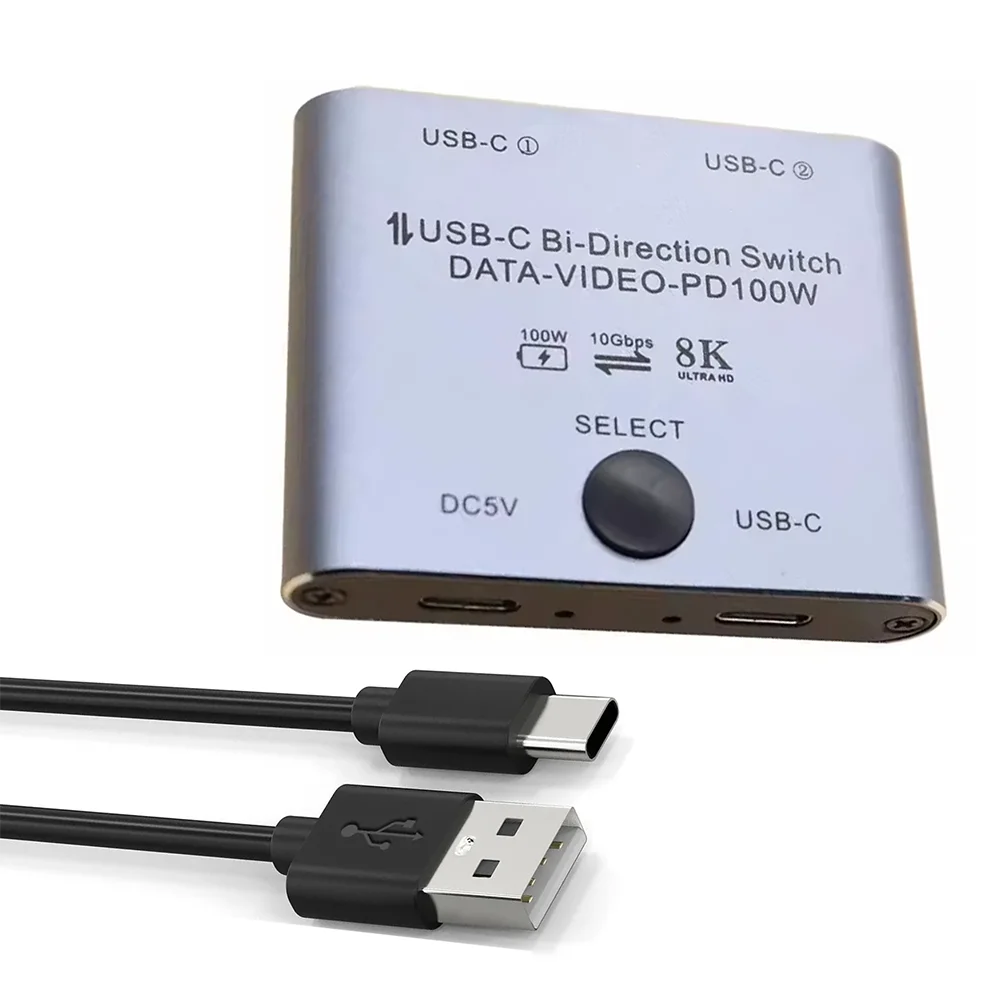

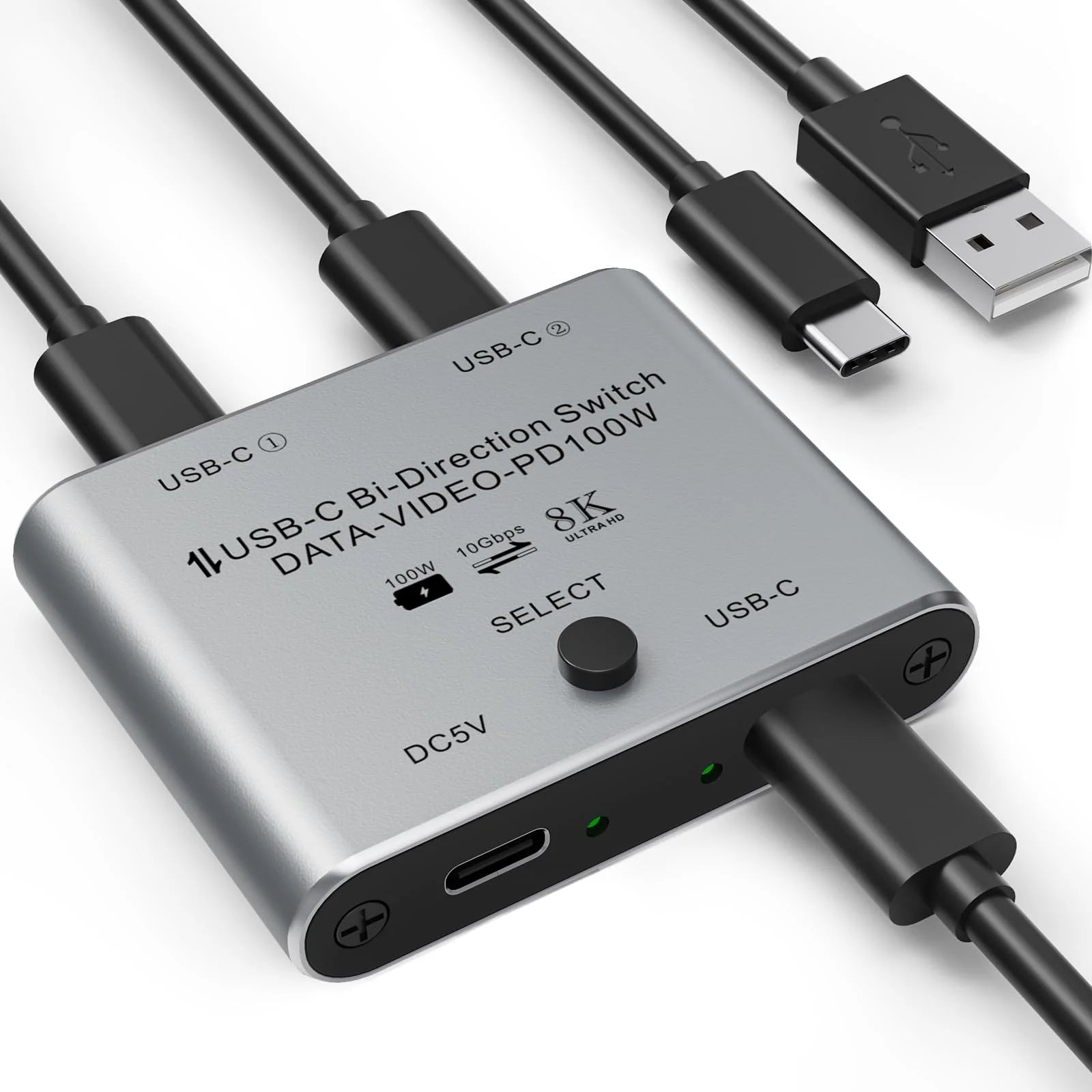

8K USB C Switch Bi-Directional USB-C

Please use standard USB-C Gen-2 cables to connect your signal source or monitor device. Otherwise, the video signal cannot be transmitted.

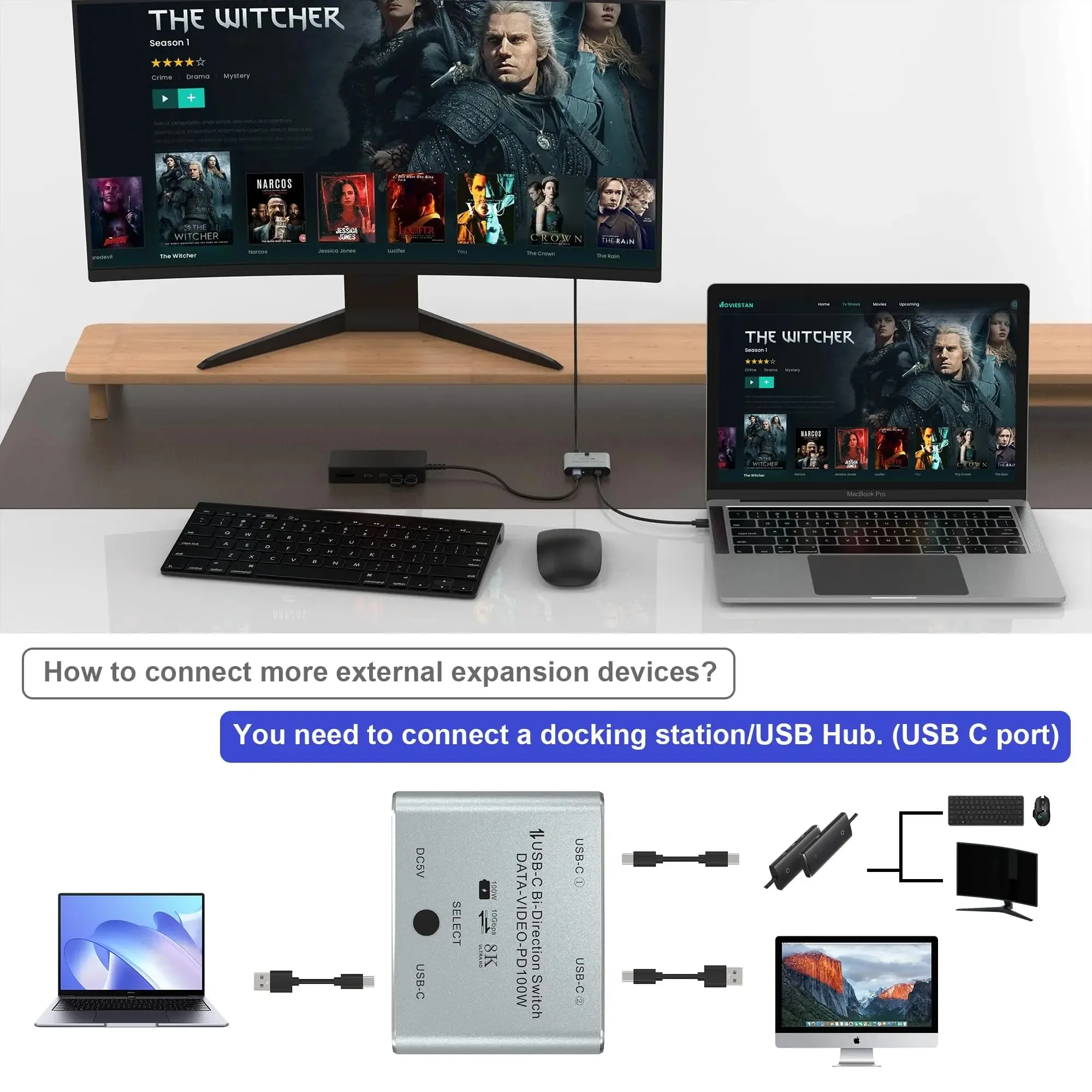

We do not recommend connecting our switch to your docking station, as this may cause abnormal USB function.

USB-C 8K Bi-Directional Video Transmission & Data & Power Switch/Splitter:

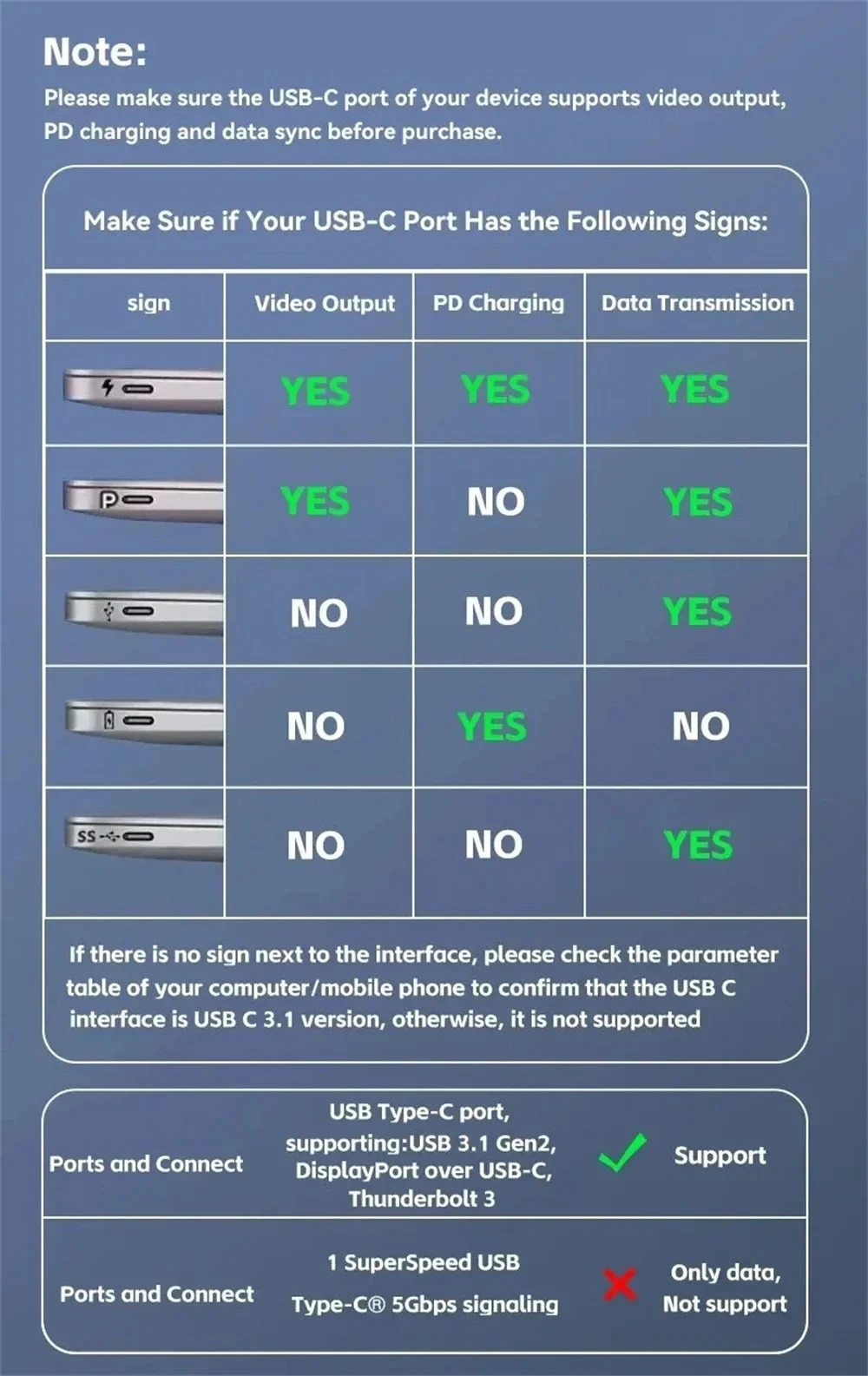

The USB-C switcher allows you to connect two USB-C sources to one USB-C display or connect one USB-C source to toggle between two displays. (Two displays CANNOT display simultaneously.) ***Both your source and display's USB-C ports should support DP Alternate Mode for video transmission.***

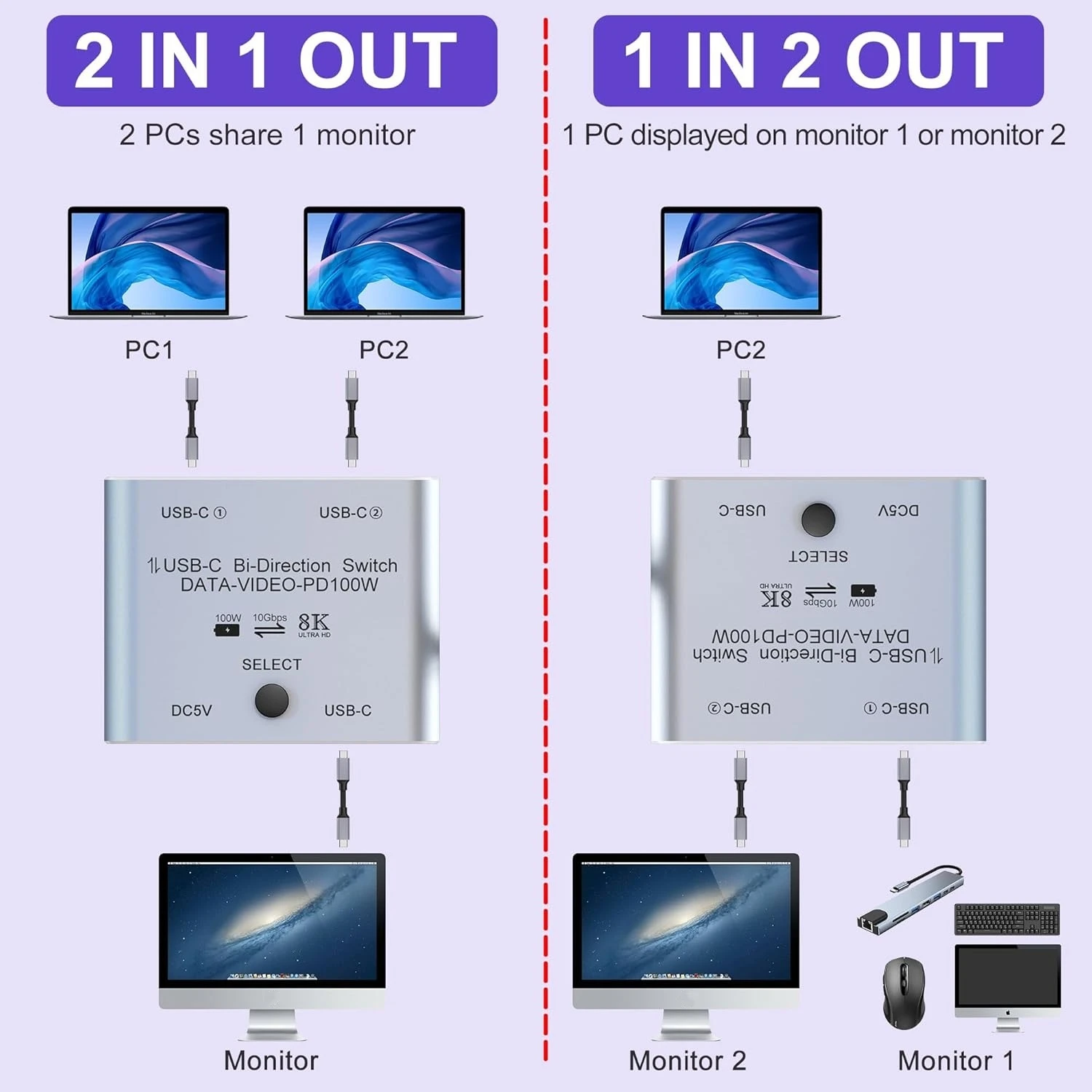

2-in 1-Out (Video Switch for Two Sources):

Connect two sources to ports "USB-C 1" and "USB-C 2" on the switch, then connect to your display using a USB-C cable. All cables between source devices and the switch must support video transmission. Press the "Select" button to switch between sources.

1-in 2-Out (Video Splitter for Two Displays):

Connect your source device to the switch via a USB-C cable, then connect two USB-C displays to ports "USB-C 1" and "USB-C 2". In this configuration, you may use USB-C to HDMI-ompatible/USB-C to DP adapter cables for your monitors. Two displays cannot be used simultaneously. The USB-C cable you use must support video transfer. Press the "Select" button to switch between displays.

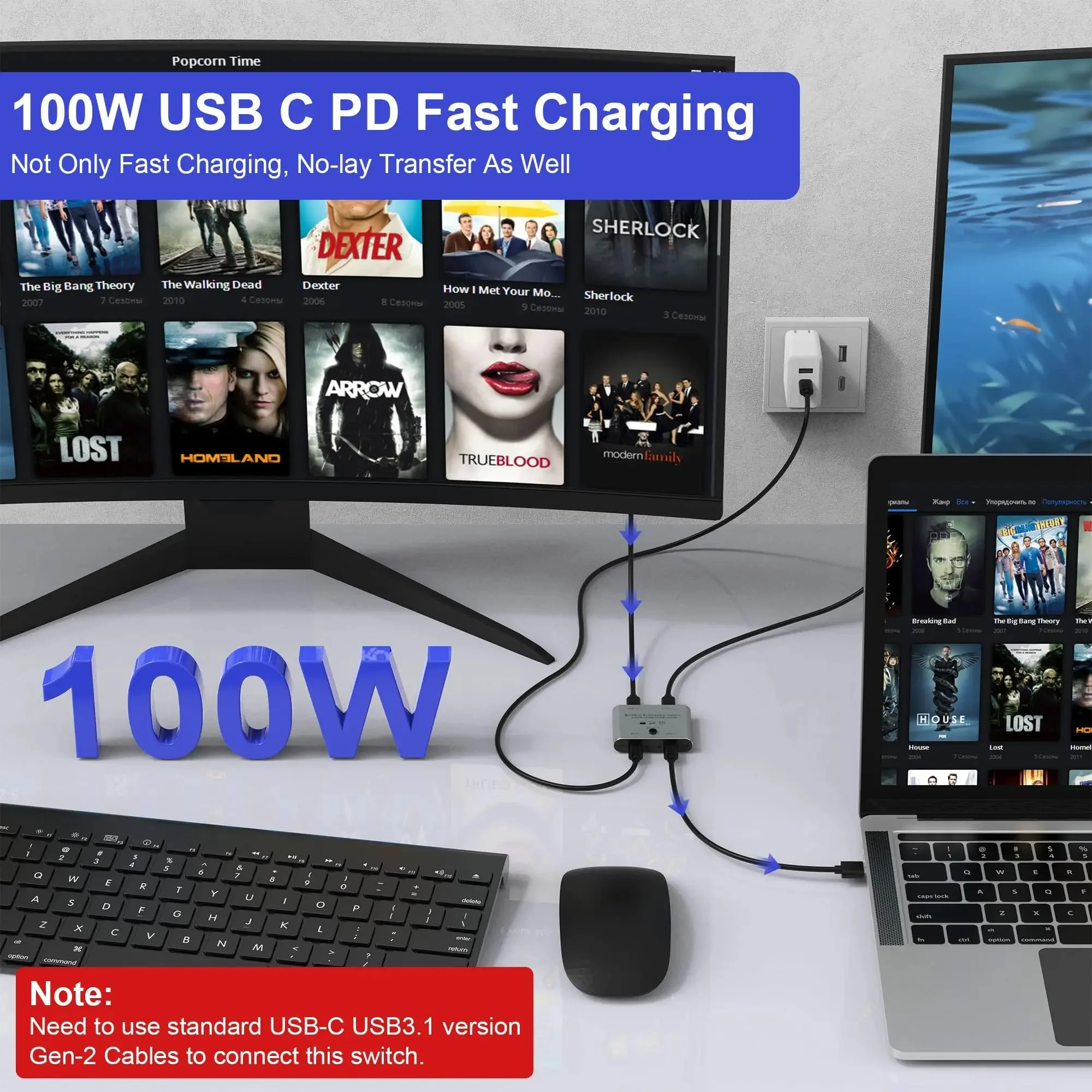

USB-C Switch with Power and Data Function:

Supports up to 100W Power Delivery and a maximum transmission speed of 10Gbps (USB 3.1 Gen2). With this switch, you can charge devices like phones, computers, and tablets, and transfer data between devices (e.g., from your computer to a USB drive). ***Both data and charging functions require your USB-C cable to support these features.***

Ultra HD 8K Video Experience:

Output up to 8K@30Hz, 4K@120Hz, or 1080P@165Hz via the USB-C switch/splitter to compatible displays. The maximum resolution depends on your source device, monitor, and cables used. For optimal video performance, we recommend using cables no longer than 3 meters in total (both ends combined). Excessively long cables may cause screen flickering or failure to display.
