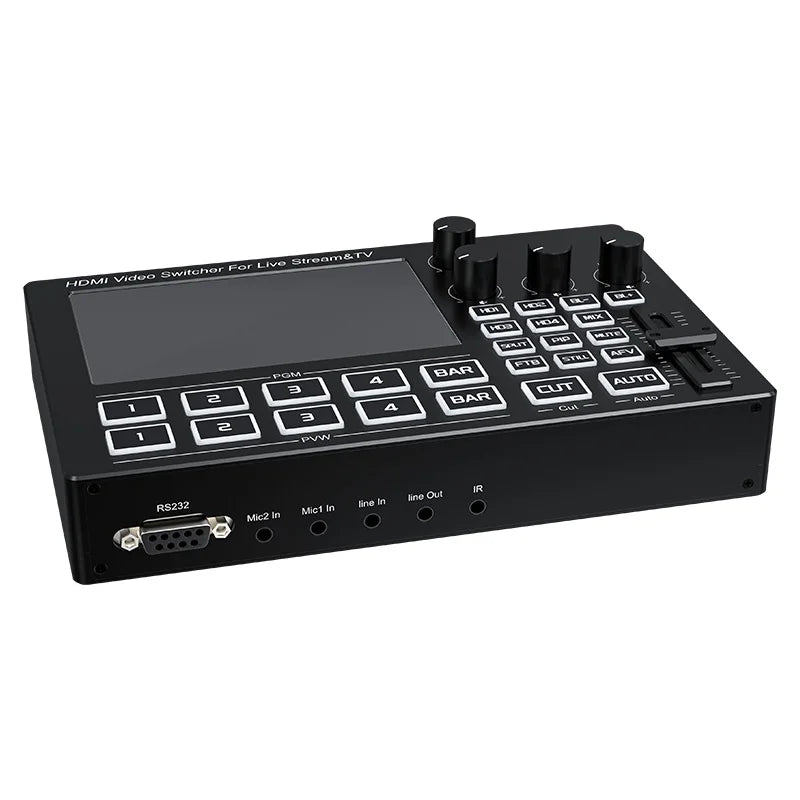

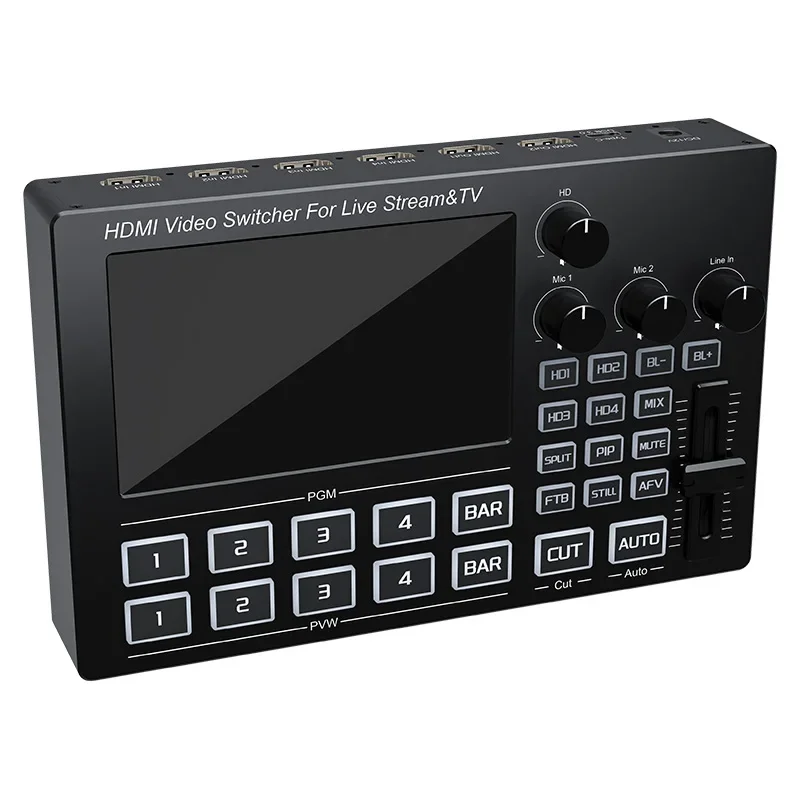

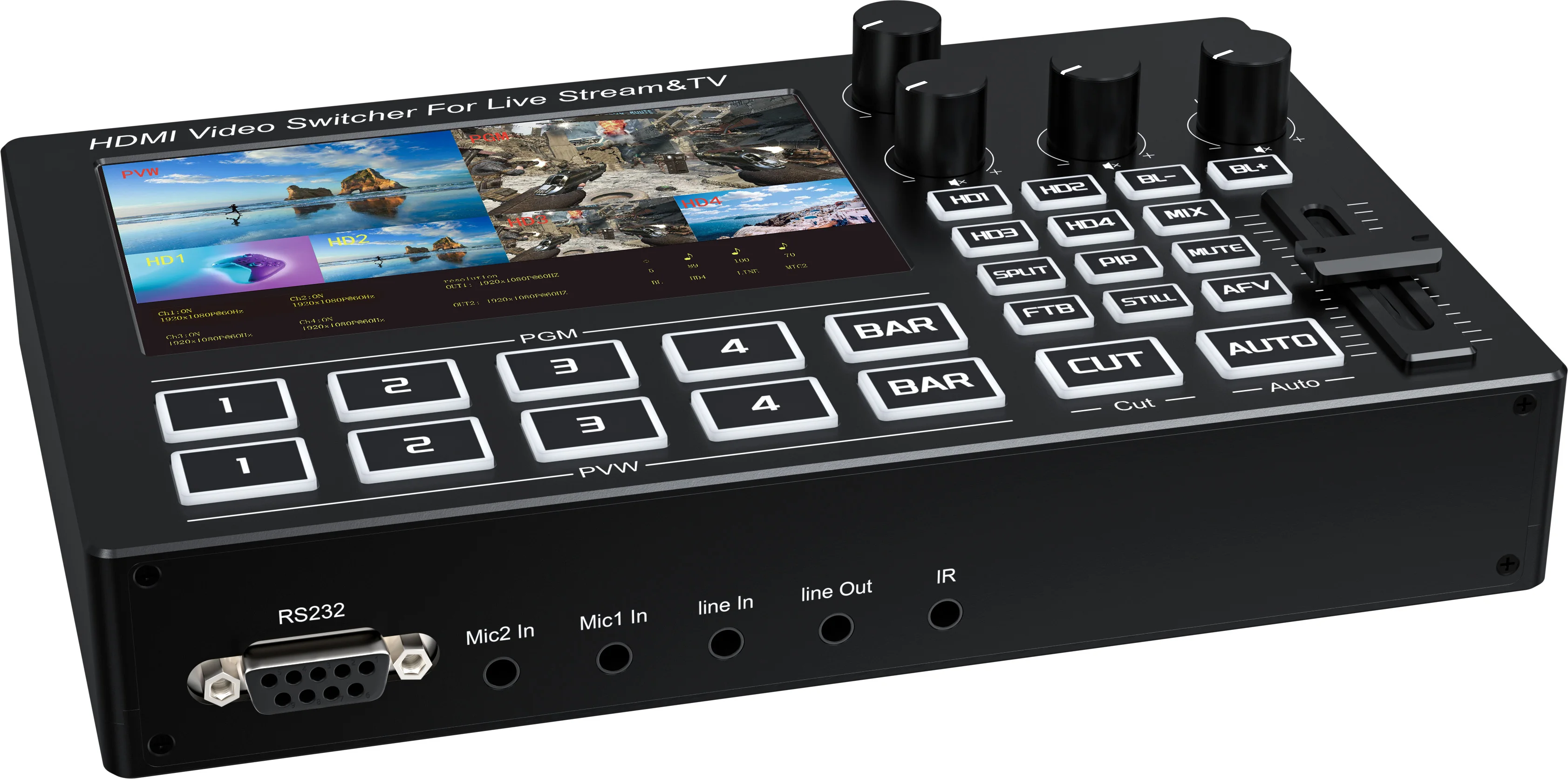

4 Channel HDMI Multi Video Switcher

4 Way HDMI Video Switcher for Live Streaming (Built-in 5-inch screen)


Introduction：
The 4way video switcher for live streaming, support 4 HDMI input resolution 1920X1080@60Hz,
The output resolution is 1920X1080@60Hz and support HDCP1.4 standard.
Support HD embedded audio or External analog audio, after mixed processing, can be embedded in the output HD signal or output from the analog port.
Built-in 5-inch IPS HD screen real-time preview, Suitable for program production, interview and speech on-site production,
outdoor experience events, school courseware production and other video switching needs.

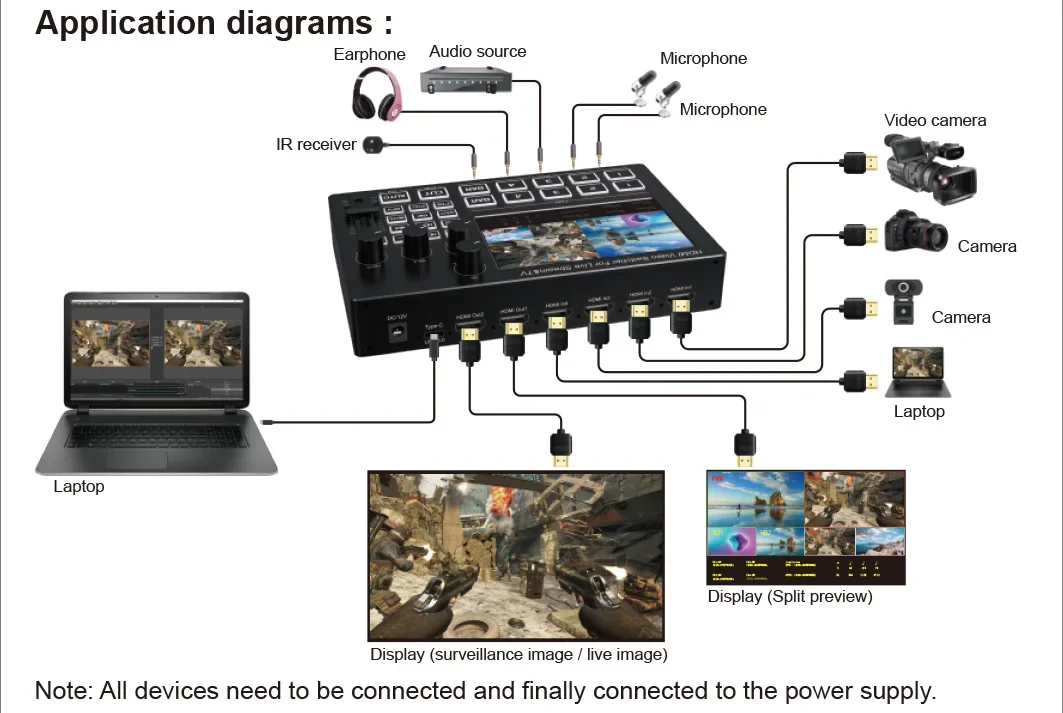

It can be used in live streaming and various event venue.

Features：
* Portable integrated design, metal body, high strength, light weight;

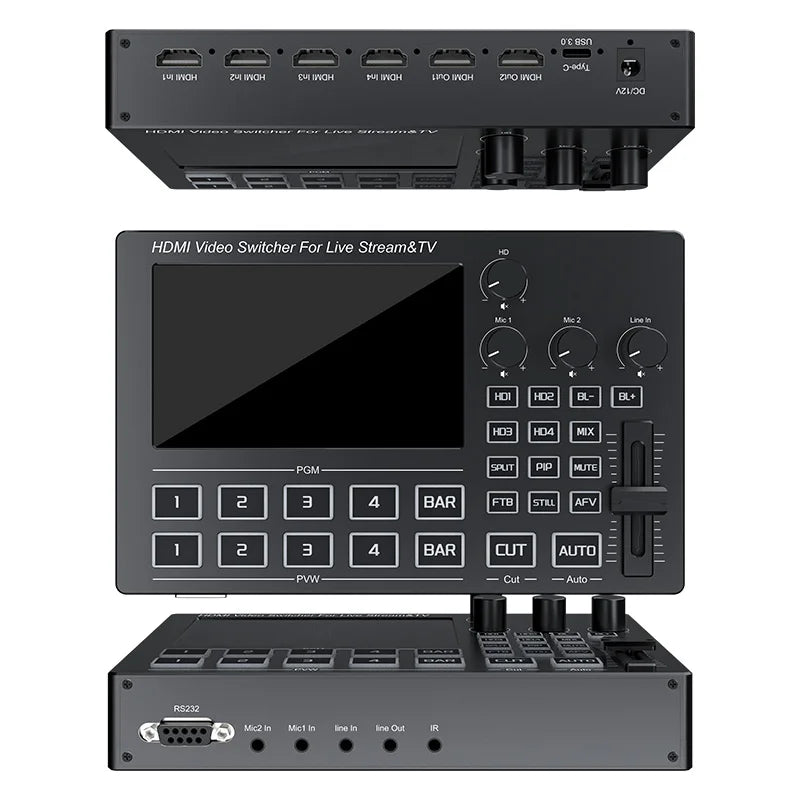

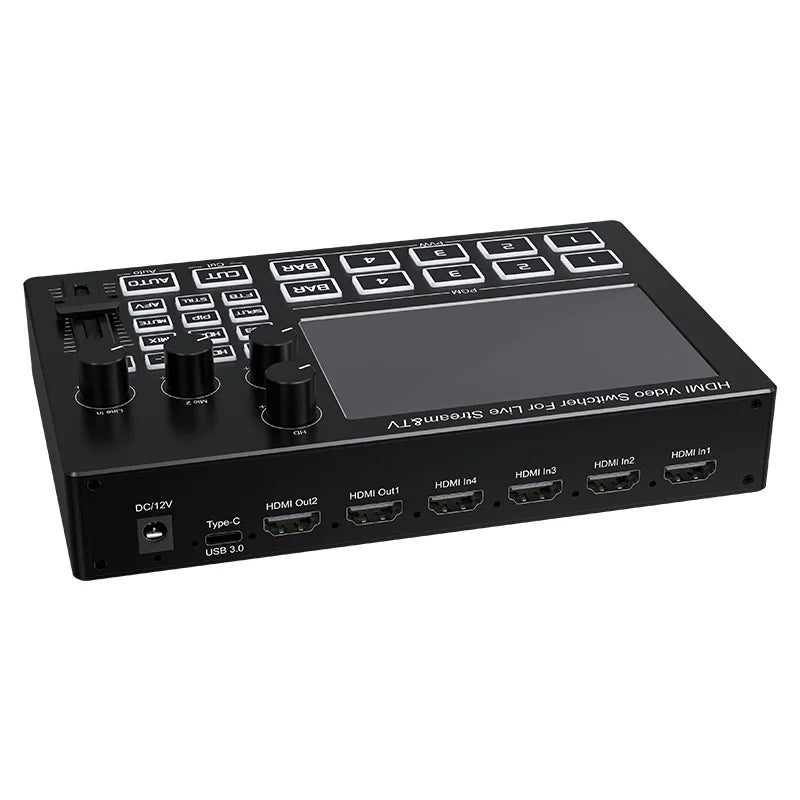

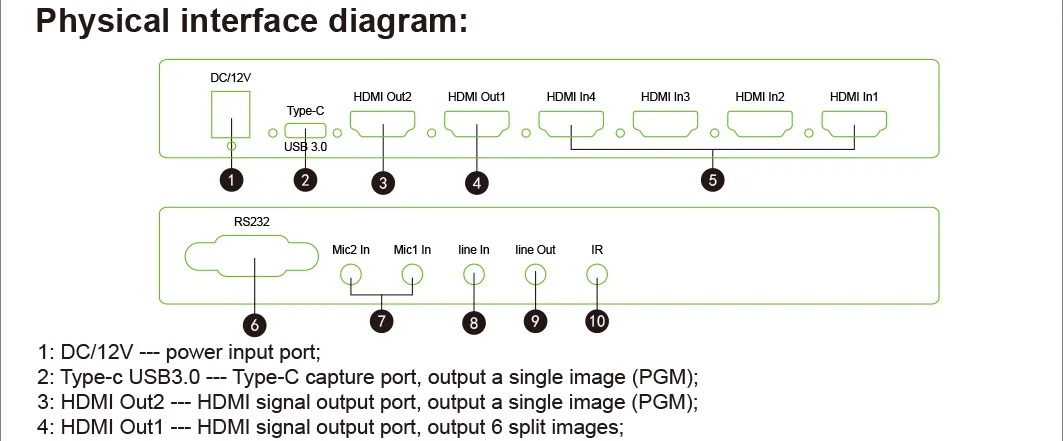

* 4 HDMI input, 2 HDMI output;

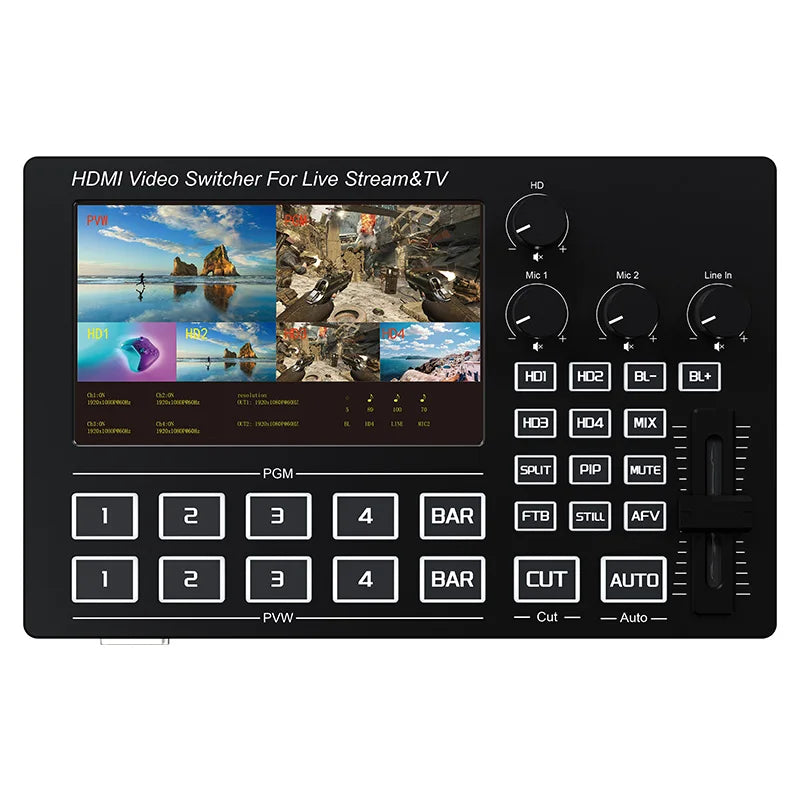

* Built-in 5-inch IPS HD screen, real-time monitoring of the input signal and the output screen;

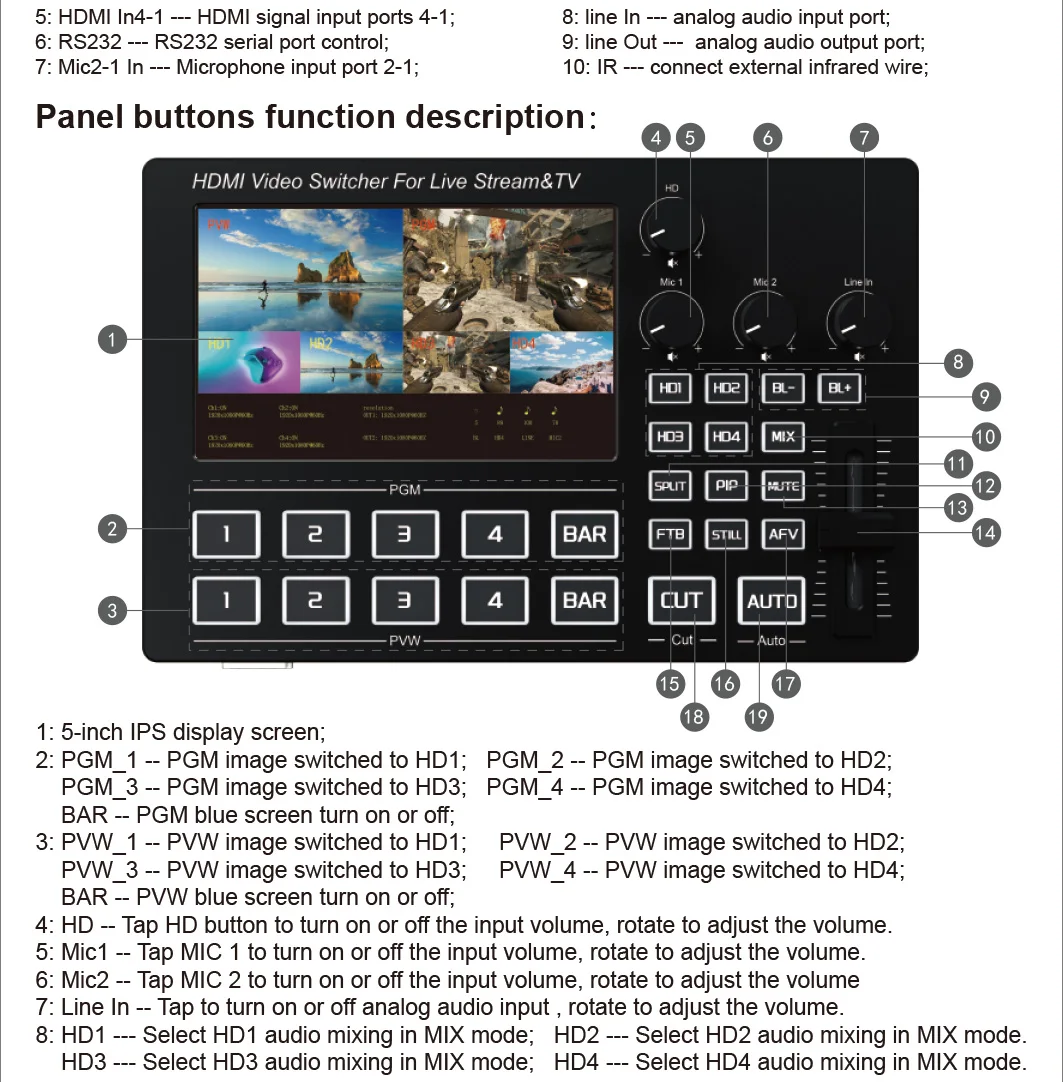

* Support through the panel BL+, BL- button to adjust the screen backlight brightness;
* Support HD embedded audio or External analog audio(MIC,LINE IN), after mixed processing,
 can be embedded in the output HD signal or output from the analog port;
* In the mix mode, support HDMI embedded audio selection fixed HDMI channel or turn off the
 HDMI embedded audio;
* Support HD audio following (fixed following PGM);
* The Type-C 3.0 capture and streaming interface supports YUY2 video format and support
 UVC 1.0；

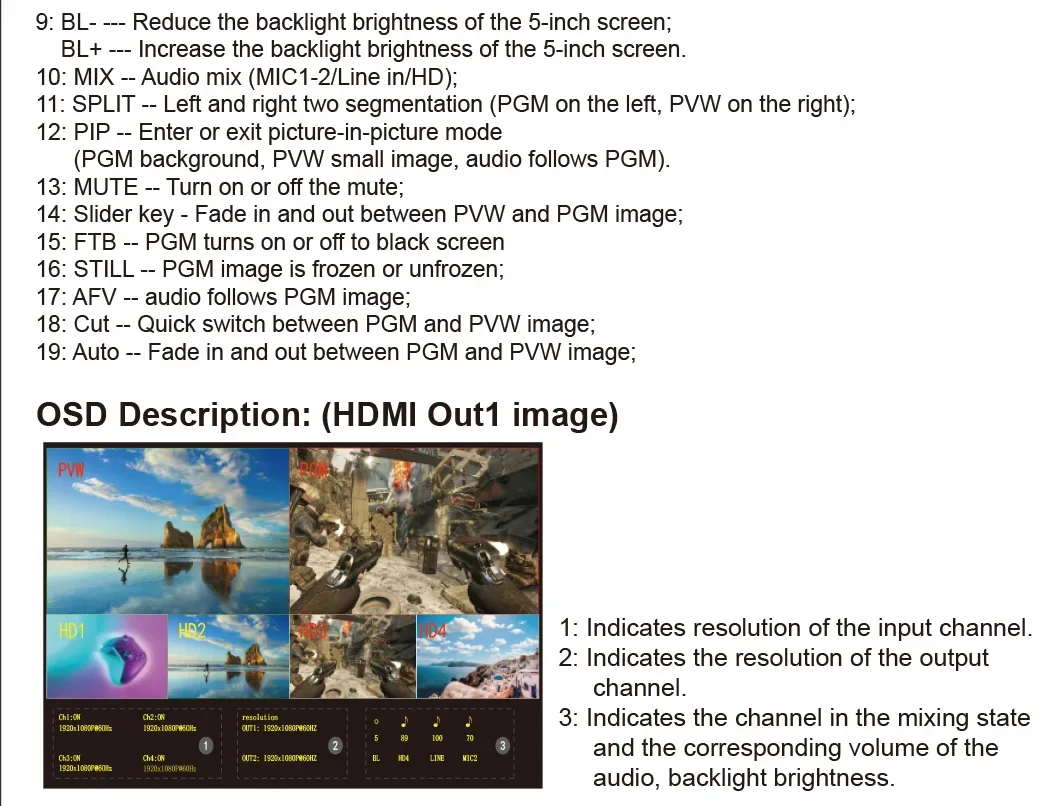

* Support OSD display input channel signal, resolution information, volume information,
 HD channel audio, backlight brightness;
* Support left and right two segmentation (PGM on the left, PVW on the right);
* Support picture in picture mode(PIP);
* Support power-off save Settings;
* High quality keys, color backlight design.

Specifications:
HDMI input resolution .... 1080P@60Hz
HDMI output resolution .... 1080P@60Hz
Type-C 3.0 capture and streaming video format ... YUY2、MJPEG
Supports audio format ... PCM
Built-in 5-inch scree resolution... 800*480
The maximum bandwidth transmission .... 148.5MHz
Maximum transmission rate ..... 1.65 x3Gbps
The input cable length .... 1080P/60Hz≤15 m AWG26 HDMI standard cable
The output cable length .... 1080P/60Hz≤15 m AWG26 HDMI standard cable
Maximum working current ..... 0.9 A
Power adapter specifications ..... Input AC(50Hz,60Hz)100V-240V; Output: DC/12V 2A
Working temperature range ..... (0℃ to +45℃)
Size ..... 200x130x52(mm)

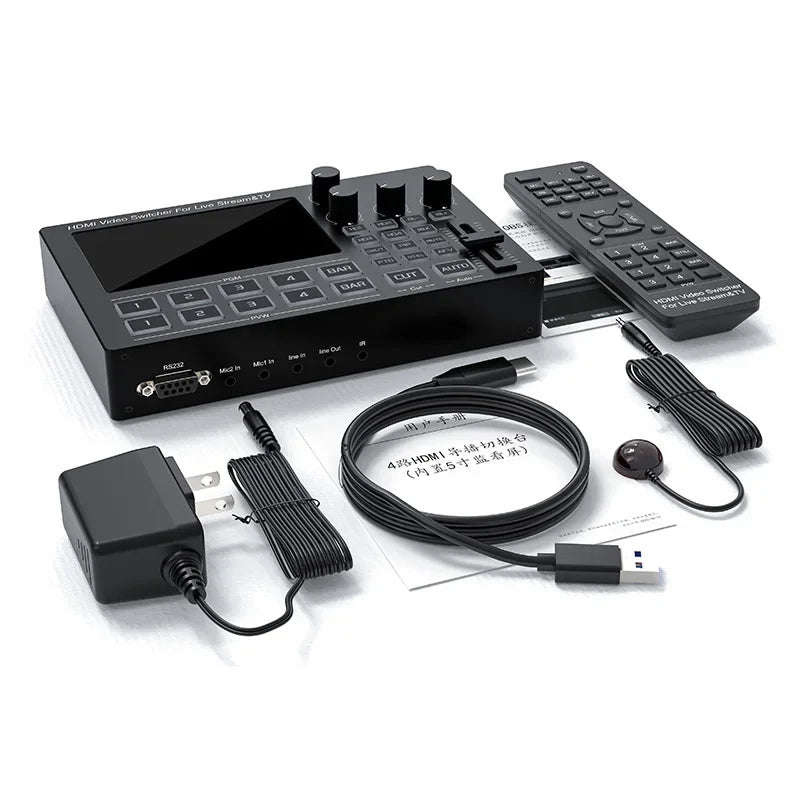

Package include
1 x 4 way video switcher for live streaming
1 x. 1M Type-c USB3.0 to USB-A 3.0 cable 10Gpbs)
1 x DC/12V 2A power adapter

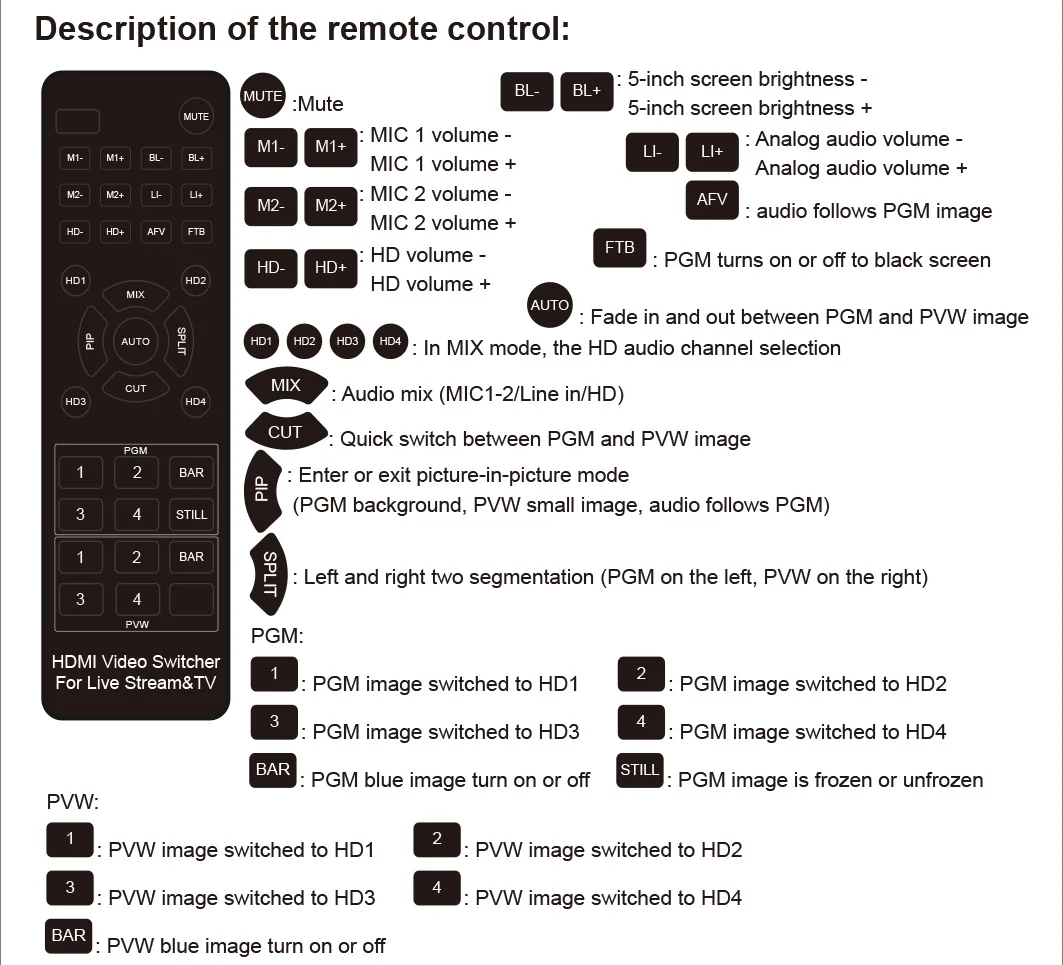

1 x Remote control(without battery)
1 x User manual
