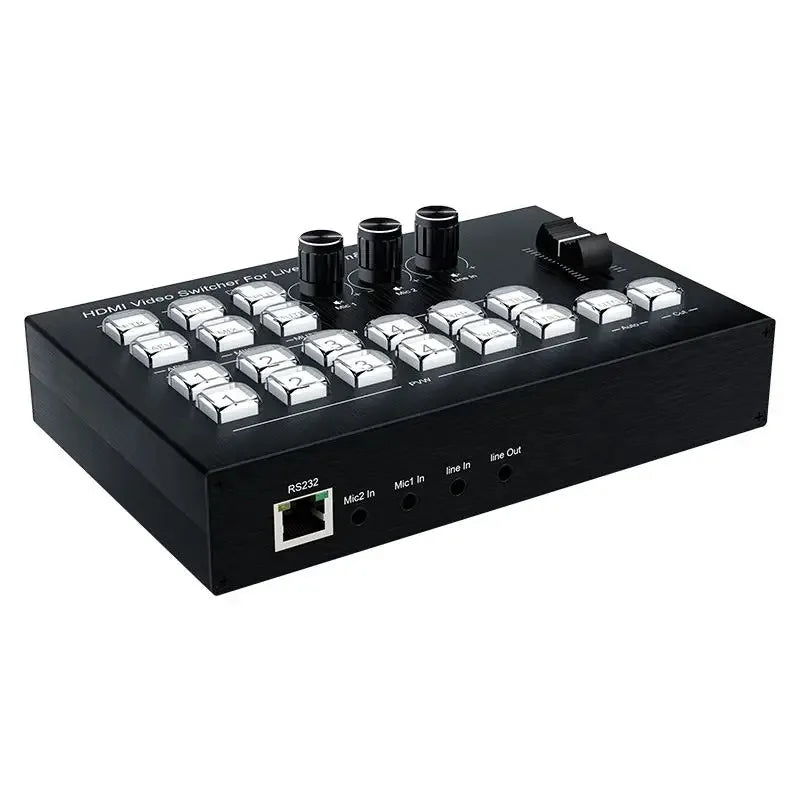

1080P HDMI Video Live Switch 4 in 2

$ 3,700.00 MXN

Oferta Agotado

Los gastos de envío se calculan en la pantalla de pago.

Introduction :

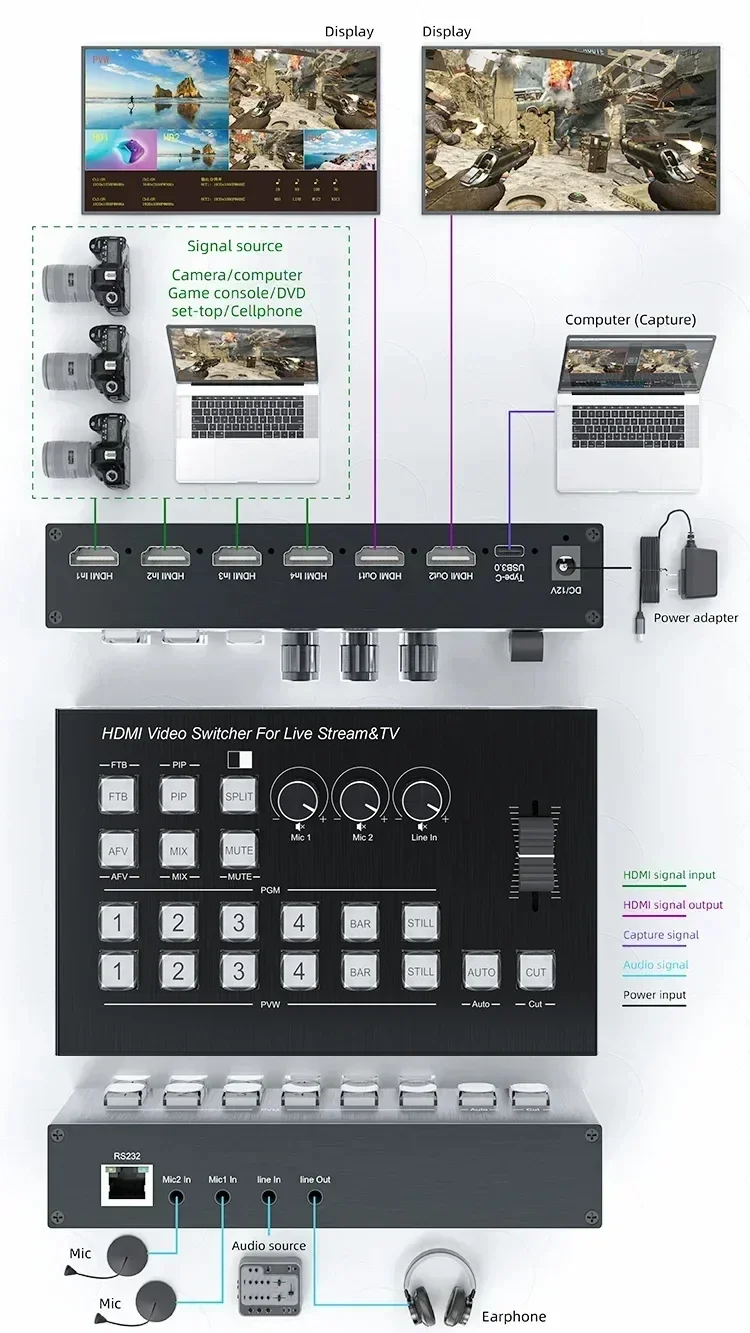

Video switcher for live streaming, 4 HDMI input support resolution 1080P@60Hz,
and support HDCP1.4 standard, support HD embedded audio or External analog audio,
after mixed processing, can be embedded in the output HD signal or output from the
analog port. All resolution of the input signal is automatically adapted, the output resolution
is 1920X1080@60Hz, To satisfy the requirements of Radio and television program
production, live production of interviews and speeches, outdoor experience events, school

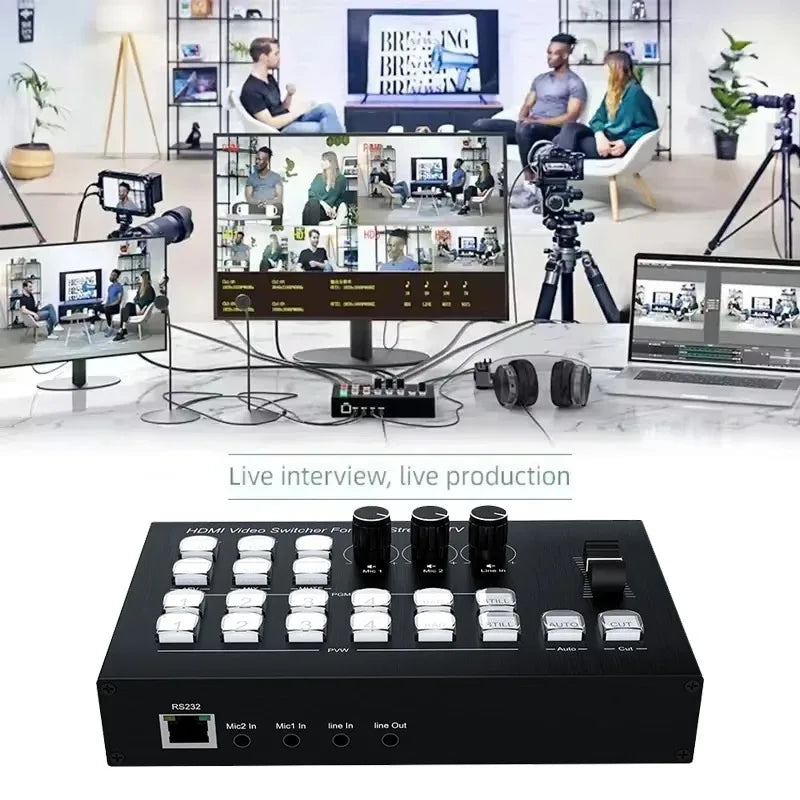

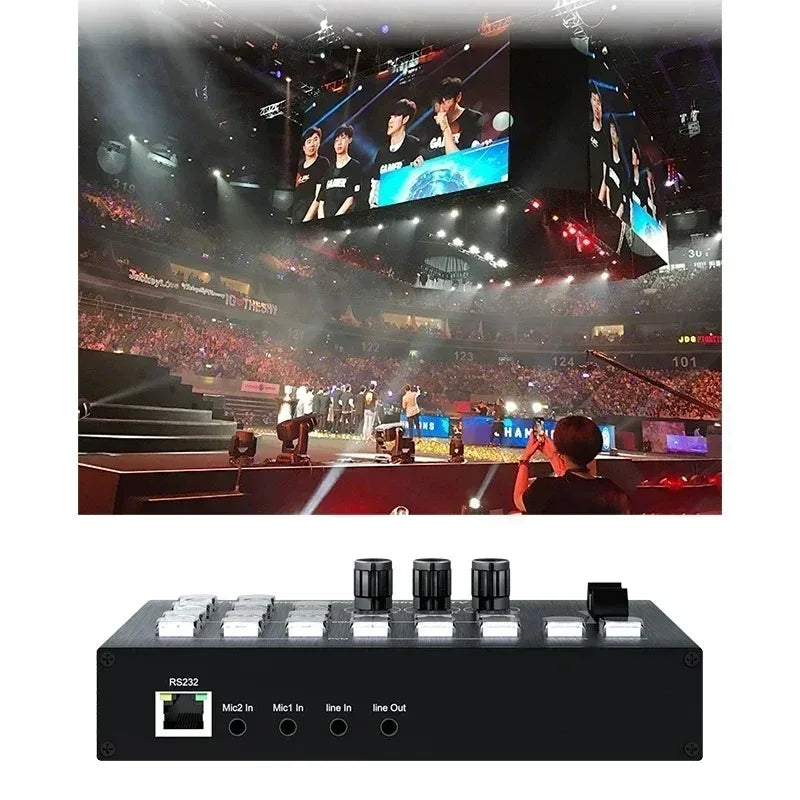

courseware production and other video switching needs. It can be used in live streaming
and various event venues.

Features :

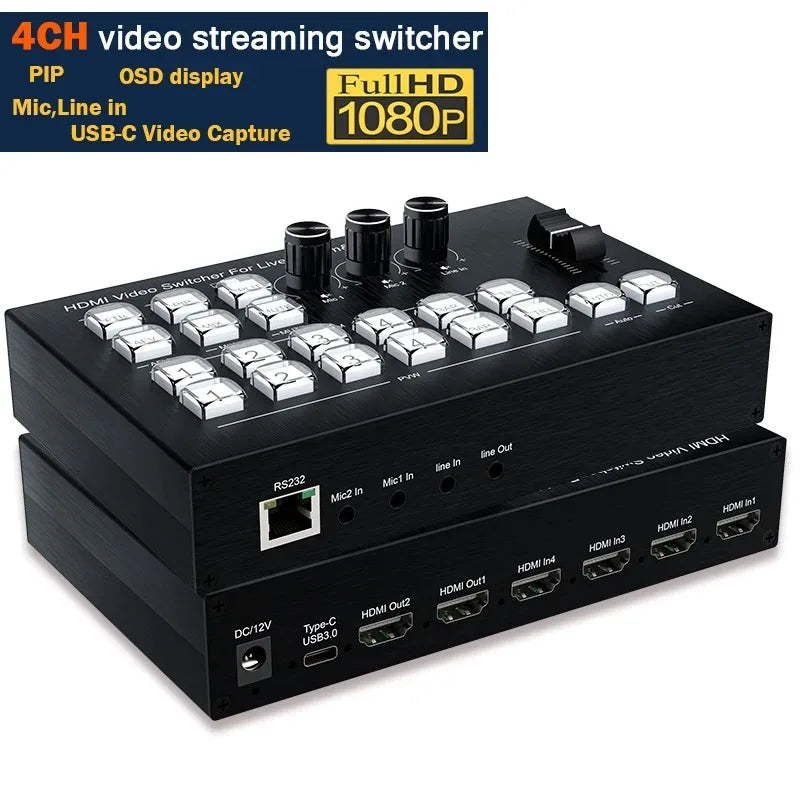

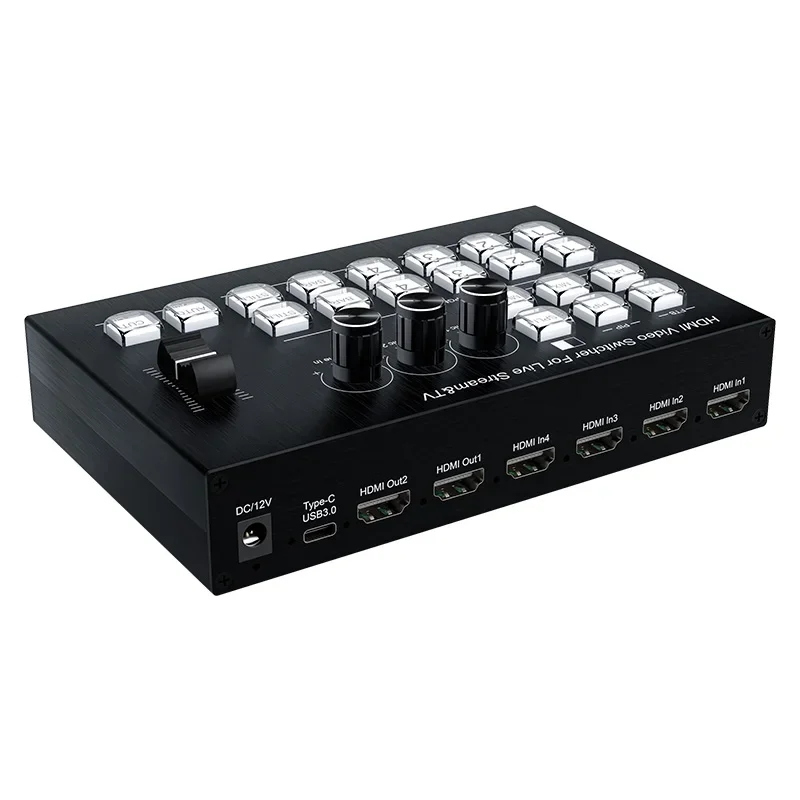

* 4 HDMI input; 2 HDMI output;
* One Type-C 3.0 capture and push network traffic port, supports video format YUY2;

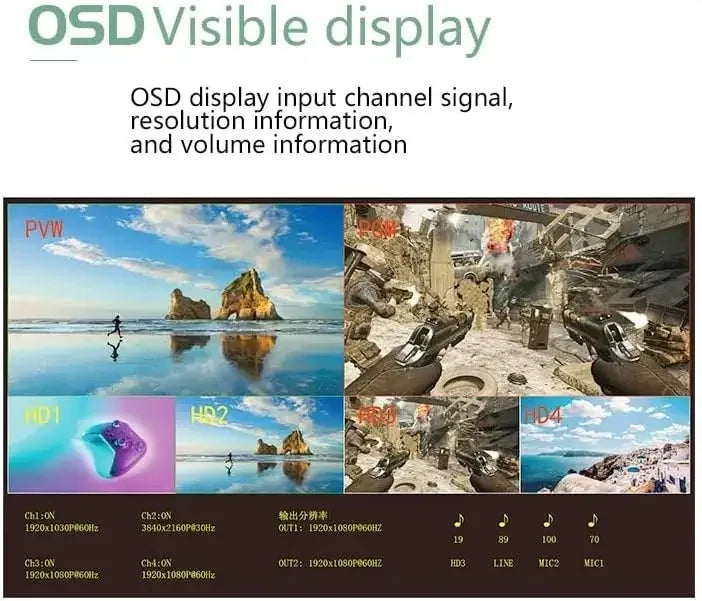

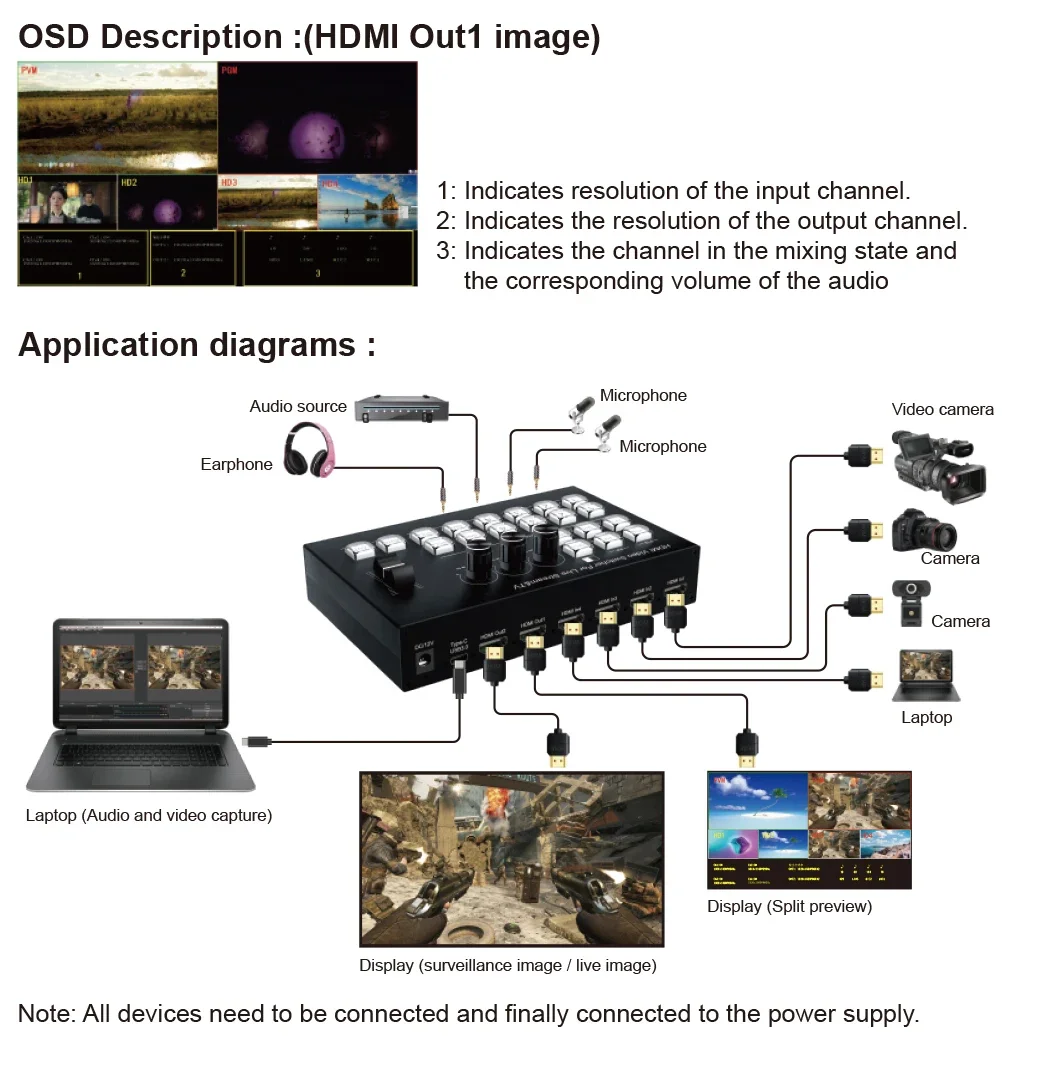

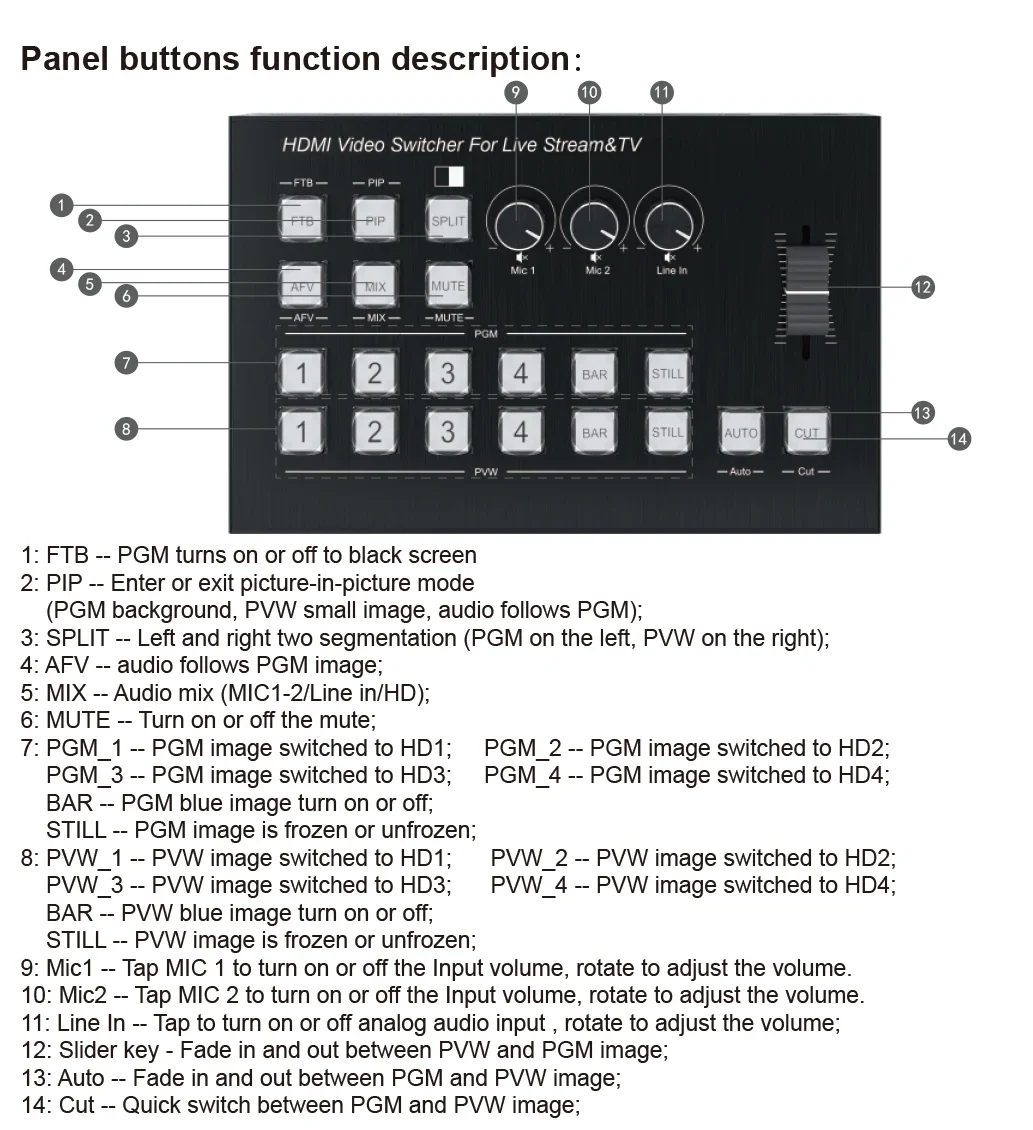

* Support OSD display input channel signal, resolution information, volume information;

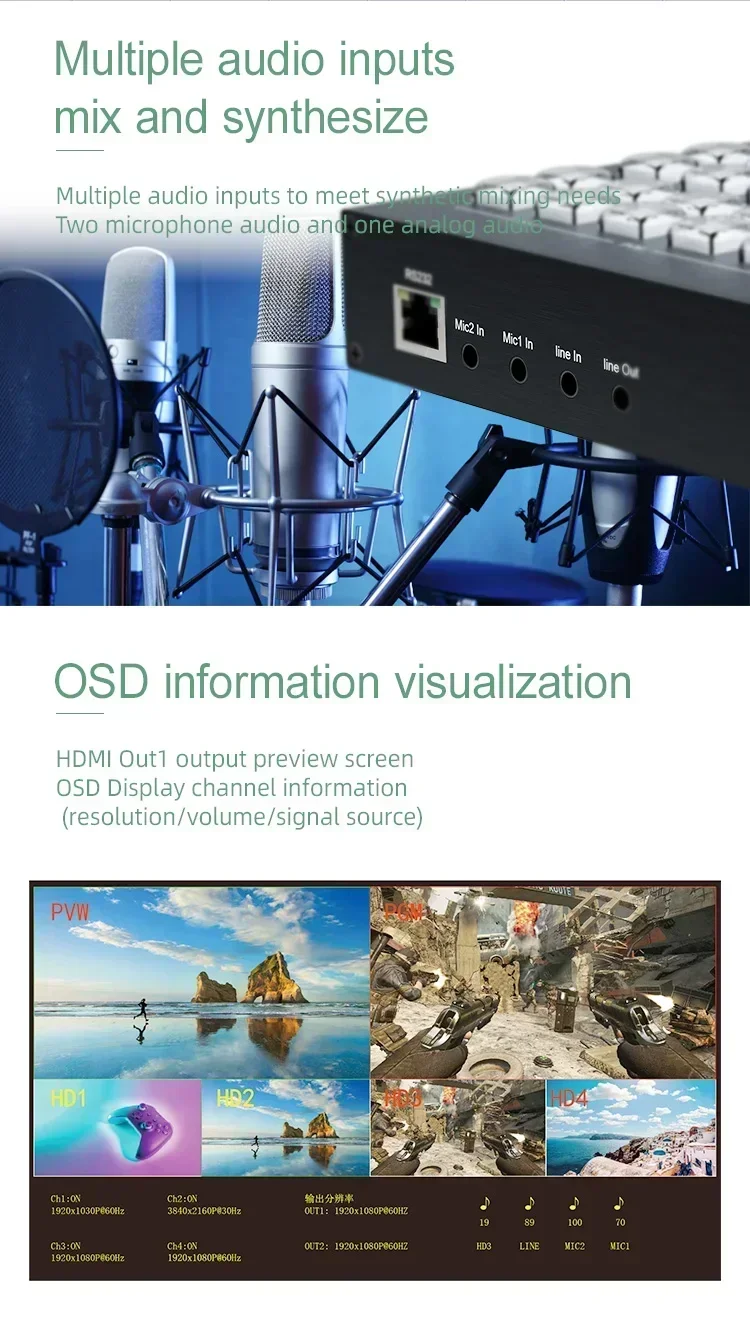

* Support MIC,LINE IN,mixing output (LINE OUT fixed mixing output);
* Support HD audio following (fixed following PGM);
* Support left and right two segmentation (PGM on the left, PVW on the right);
* Support LINE OUT and HD audio output;
* Support power-off save Settings;

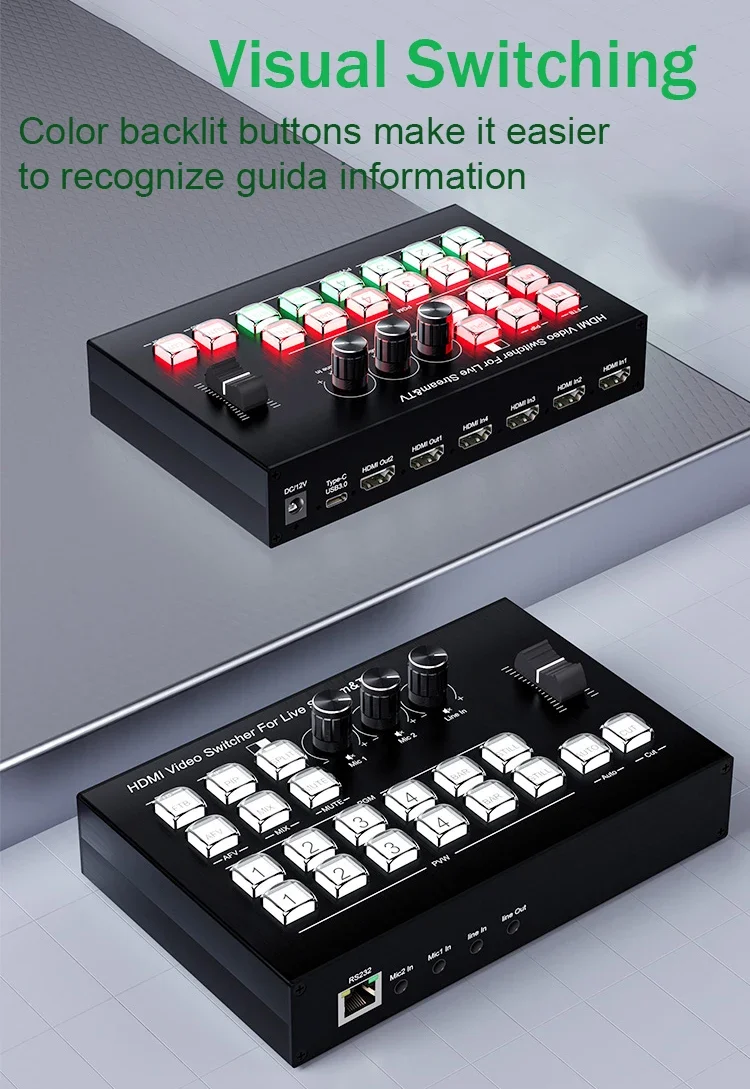

* High quality keys, color backlight design.

Specifications:
HDMI input resolution ......... 1080P@60Hz
HDMI output resolution ........... 1080P@60Hz
Type-C 3.0 capture and push network traffic video format ....... YUY2、JPEG
Supports audio format ......... PCM
The maximum bandwidth transmission ........ 148.5MHz
Maximum transmission rate ...... 1.65 x3Gbps
The input cable length ....... 1080P/60Hz≤15 m AWG26 HDMI standard cable
The output cable length ........ 1080P/60Hz≤15 m AWG26 HDMI standard cable
Maximum working current ...... 0.7 A
Power adapter specifications .......... Input AC(50Hz,60Hz)100V-240V; Output: DC/12V 2A
Working temperature range ....... (-15℃ to +55℃)
Size ...... 180x115x52(mm)

Note: Make sure that all inputs and outputs are standard native HDMI interfaces ,Not support any converters.

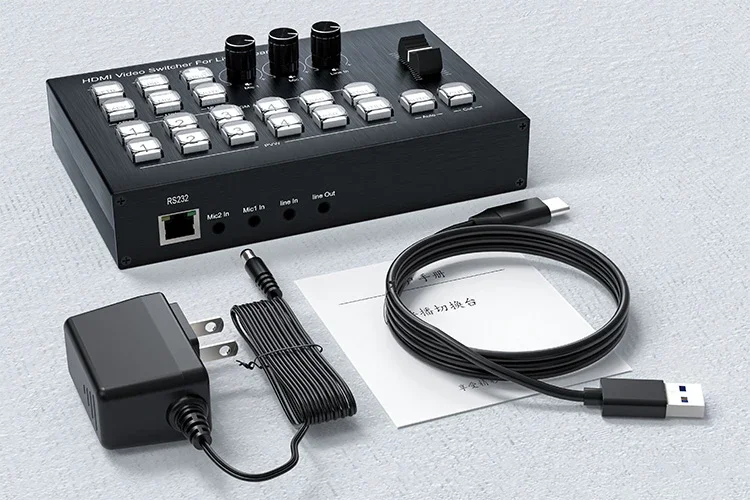

Package include:
1 x Video switcher for live streaming
1 x 1M Type-c USB3.0 to USB-A 3.0 cable 10Gpbs)
1 x DC/12V power adapter
1 x User manual
